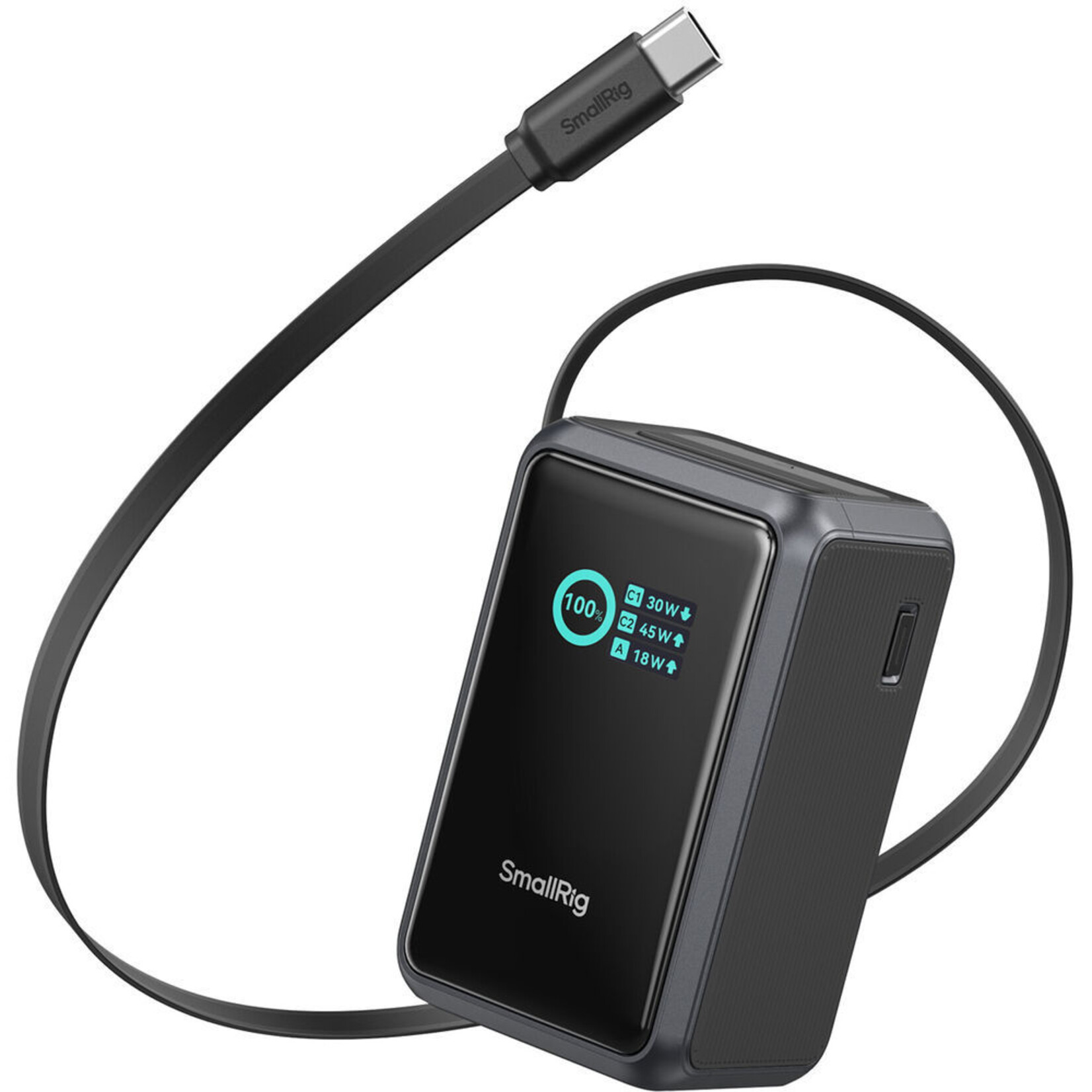

SmallRig Nano36 Power Bank (10,000mAh)

he Nano36 Power Bank from SmallRig features a mini V-mount design. It is equipped with a retractable 27.6" USB-C cable and an integrated USB-C port, both of which charge devices at up to 45W and recharge the power bank at up to 30W. There is also an integrated USB-A port which charges devices at up to 22.5W. Also featured are multiple 1/4"-20 screw holes and positioning holes on the back, which allow for a metal plate to be secured via 1/4"-20 flathead screws for V-mount mounting, plus a blue TFT color smart display for monitoring real time info that includes the battery level, power output, and battery health, plus short circuit, overcurrent, overvoltage, over-temperature, and undervoltage protections.

Conceptual Design

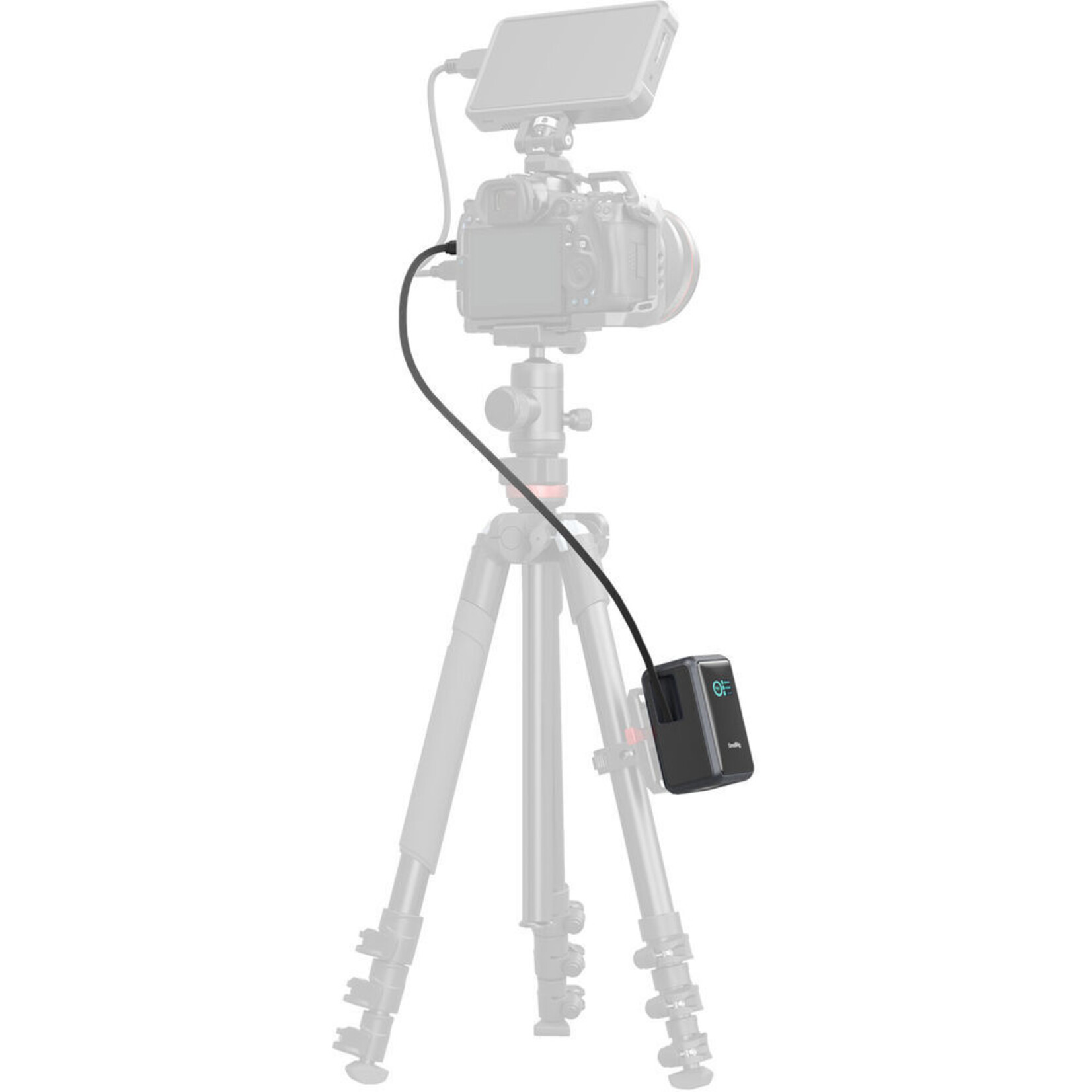

Conceptual design of the Mini V-mount power bank consists of a replaceable V-mount plate and a retractable cable power bank. Through modularization design, a single power bank is equipped with both a V-mount ecosystem mounting capability (via the replaceable V-mount plate) - enabling seamless integration into photographers' existing V-mount power supply systems, and zero cable tangling experience (via the retractable cable) - eliminating cable interference on shooting sites.

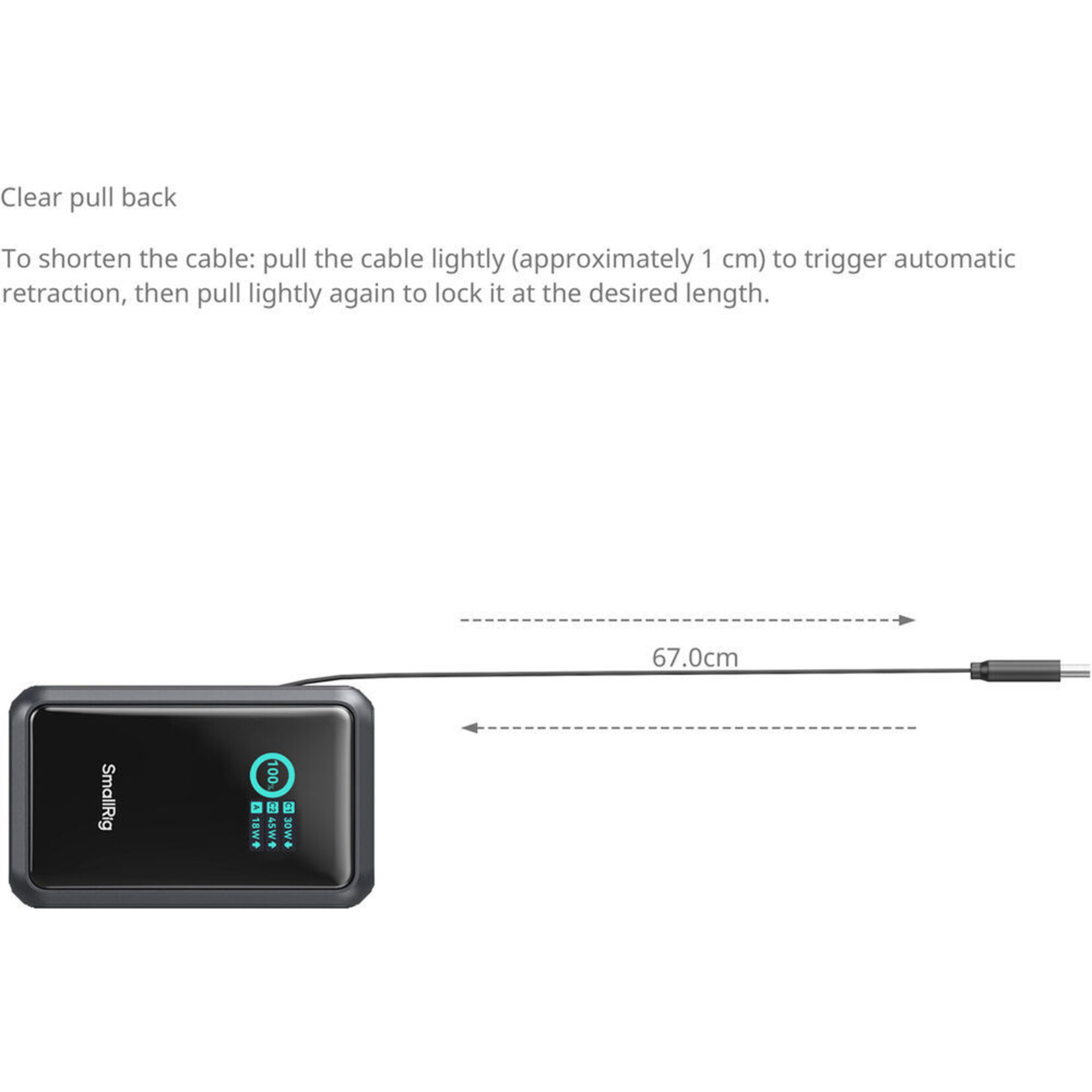

Built-in 27.6" Retractable USB-C Cable

A built-in 27.6" retractable cable helps eliminate cable interference on shooting sites, turning the power supply connection between the power bank and the device into an operation of "pull to use, release to retract", reducing factors that interfere with movement and shooting caused by cables during mobile shooting, eliminating the whole chain of "looking for cables, organizing cables, winding cables, forgetting to bring cables, and achieving zero cable management cost.

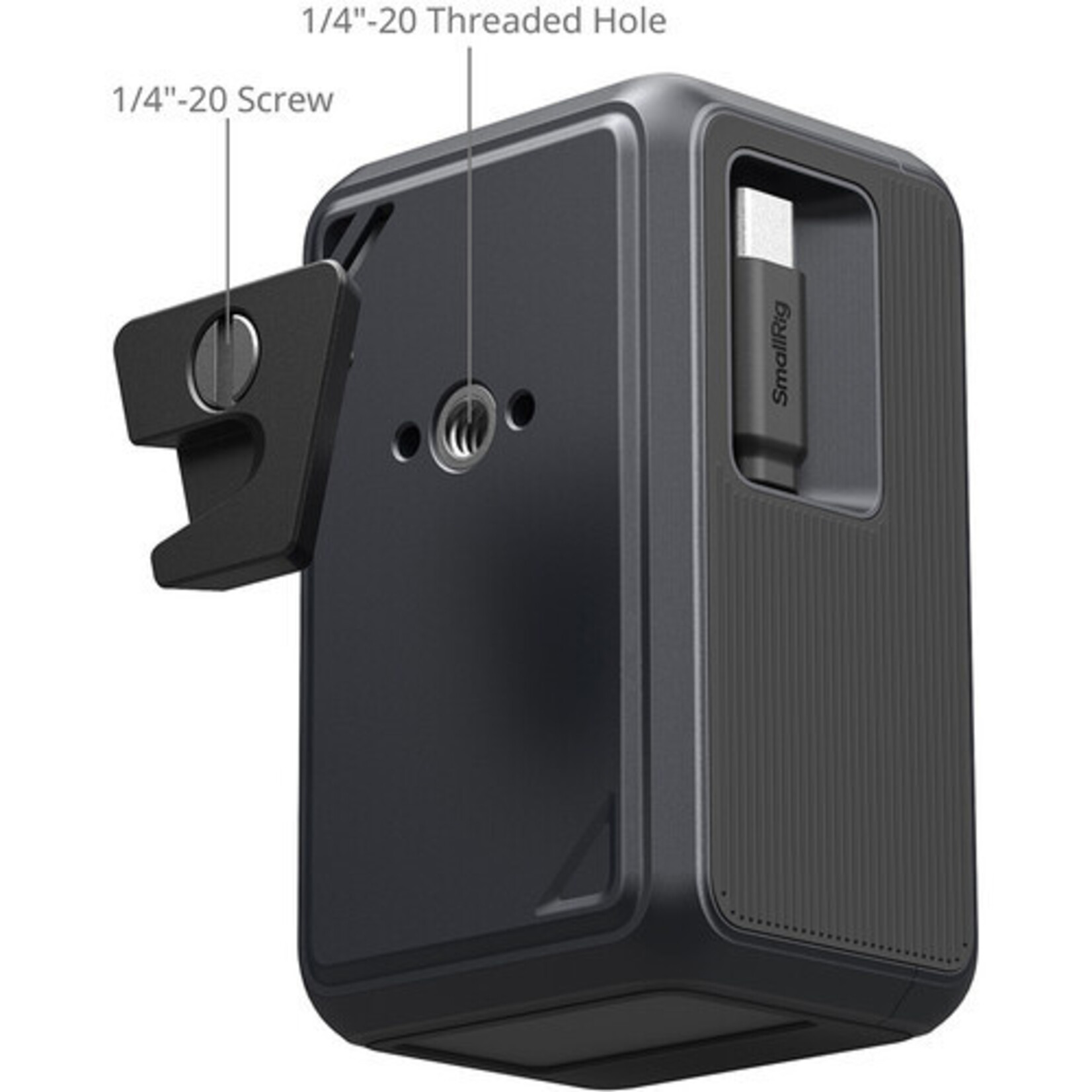

Detachable V-Mount Plate

The detachable V-mount plate endows the power bank with the mounting identity of "photographer gear language" - it can be mounted on professional shooting systems just like a V-mount battery, can be transformed into a universal power bank by removing the V-mount plate, and can also be replaced with other quick-release components to support magic arms and crab clamps.

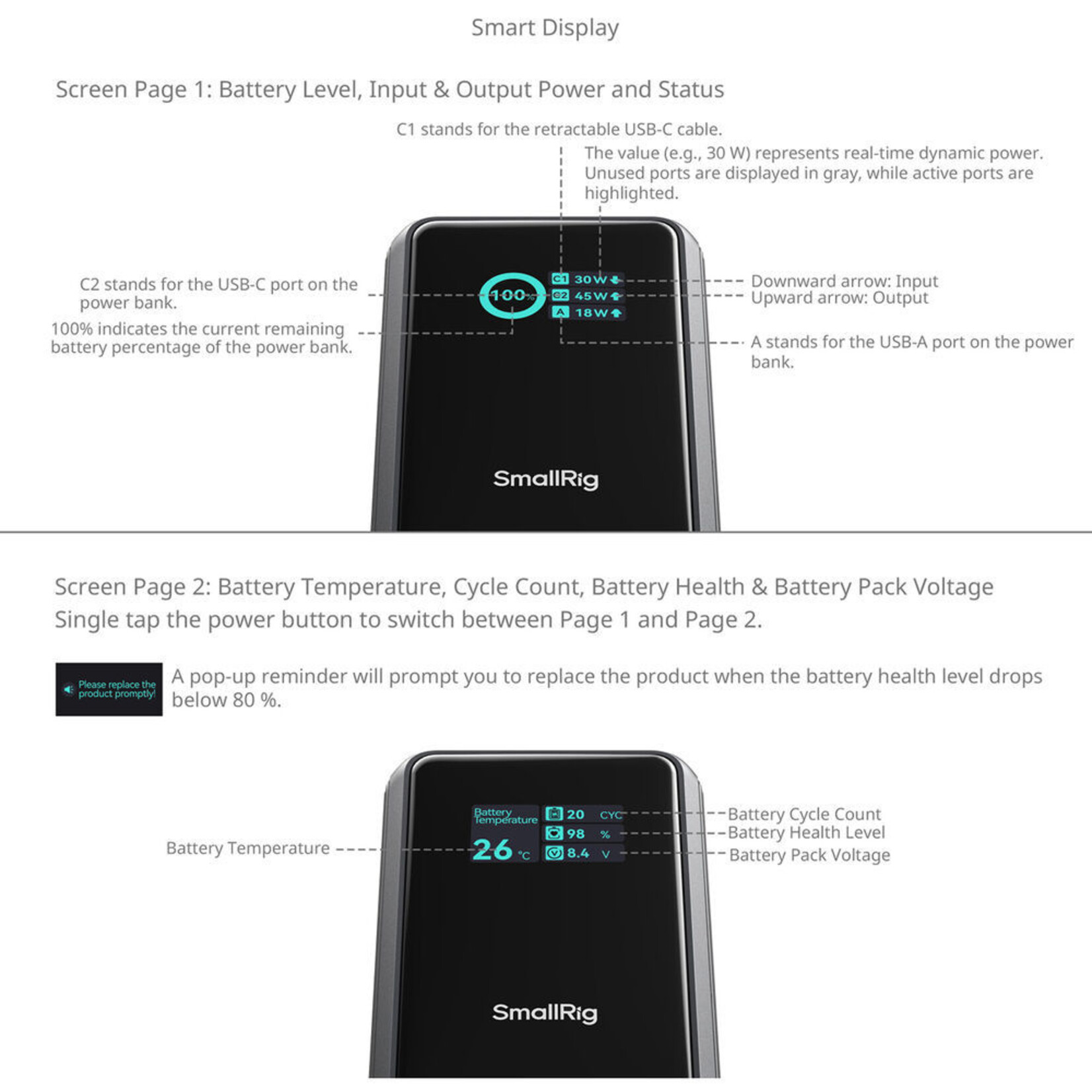

Built-in TFT Color Screen

Equipped with a built-in TFT color screen with dazzling blue display, it shows the battery level and the input/output power information of each port, eliminating the vague perception of battery and power status. The health information, cycle count, remaining cycle life, and temperature of the battery pack can all be displayed on the screen with a single keystroke.

Comprehensive Safety Protection

The photographer's power bank is equipped with protection functions such as short circuit protection, overcurrent protection, over-temperature protection, overvoltage protection, and undervoltage protection, which ensures safety during charging and discharging and gives you more peace of mind when using it.

Single Port Operation

USB-C Cable/USB-C Port - 45W
USB-A Port - 22.5W

Dual Port Operation

USB-C Cable + USB-C Port: 10W + 10W
USB-C Cable / USB-C Port + USB-A Port: 10W + 10W

Triple Port Operationg

USB-C Cable + USB-C Port + USB-A Port: 7W + 7W + 6W
